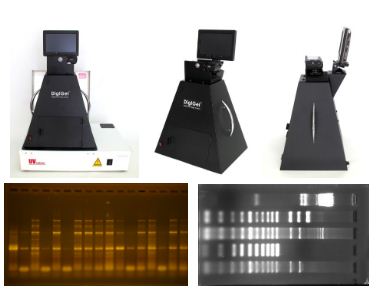

Simple gel documentation , capture gel image for DNA , RNA , protein etc. affordable price, easy setup.

Applications

EtBr Gel , SYBR Green Gel , SYPRO Orange Gel , SYPRO Red Gel ,SYPRO Ruby Gel , Commasie blue Gel , X-ray film , Colony plate , Western blot , TLC plate , Silver stain gel, Western blot membrane etc.

Specification :

• High resolution 24,000,000 pixels
• Sensitivity setting: ISO = 100-12000
• Image capture: Color, B&W
• Monitor: 7 inch display Gel image (HDMI)
• Directly operation: don't need computer control, protect from EtBr contaminate
• Image can be transfer to computer via cable or memory card transfer or wifi.
• Long time exposure: 1/4000 second - 60 second.
• Aperture range : maximum F4.0(W) / F6.0(T)
• Reflective light source: 4W x 2 tubes / white light , (option) e.g. UV 365nm, 254nm, 306nm.
• Manual zoom in , zoom out, focus.
• Moveable dark hook for easy transfer from UVlight box to white light box.
• Fit on any kind of UV transilluminator or blue light box (option: platform adapter)

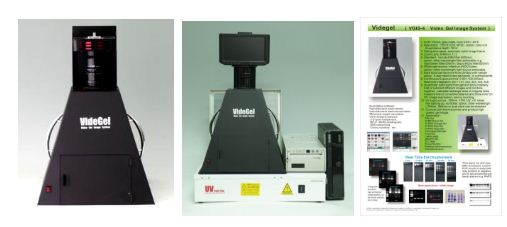

Simple gel documentation , capture gel image for DNA , RNA , protein etc. affordable price, easy setup.

Applications
EtBr Gel , SYBR Green Gel , SYPRO Orange Gel , SYPRO Red Gel , SYPRO Ruby Gel , Commasie blue Gel , X-ray film , Colony plate , Western blot , TLC plate , Realtime electrophoresis , chemiluminescence

Specifications

• 1/2inch, grayscale, Cool CCD -25 oC ( bellow ambient ), high sensitive detecting system. sensitivity <0.01ng
• Chip resolution :1391x1039=1,440,000pixels, ( Max.5,700,000)
• Preview resolution:1391x1039.
• Exposure time : 0.001 second - 10 hours.
• Filter selector: 4 filter well, rotating change, include insert hole which is easily to access and install filters in this full dark box.
• Quantitative depth: 16bit , grayscale = 65535.
• Filter : Standard include EtBr filter( wavelength= 595nm ), Option: other wavelength / 440nm, 530nm, 630nm
• Setting sequence capture: automatic catch 1-10 images with different exposure time and auto save
• Zoom Lens: 8-48mm / F1.2, ( Option: 8-48mm / F1.0 )
• White light source: reflective, 8WX2 tubes, Option : other wavelength light source UVA, UVB, UVC
• Safety door can automatic shot down the UV Light when door is open or continuous lighting on for view actual gel or cutting gel
• Option: can install multi-wavelength light source ( 440nm , 530nm, 590nm , 630nm. Etc.) and flexible light source for Realtime electrophoresis or Multi-color fluorescent images .

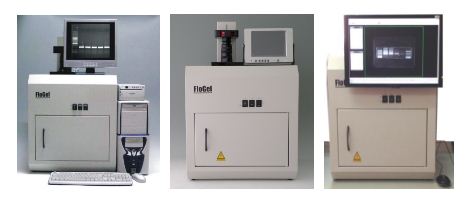

Simple gel documentation , capture gel image for DNA , RNA , protein etc. affordable price, easy setup.

Applications
EtBr Gel , SYBR Green Gel , SYPRO Orange Gel , SYPRO Red Gel , SYPRO Ruby Gel , Commasie blue Gel , X-ray film , Colony plate , Western blot , TLC plate , Realtime electrophoresis , chemiluminescence

Specifications

• 1/2inch, grayscale, Cool CCD -25℃( bellow ambient ) high sensitive detecting system. sensitivity <0.01ng
• Chip resolution :1,440,000pixels, Image resolution: 5,700,000 pixels
• Exposure time : 0.001 second - 10 hours.
• Quantitative depth: 16bit , grayscale = 65535.
• Filter : Standard include EtBr filter( wavelength= 595nm ),
• Sequence capture: automatic catch 1-10 images with different exposure time and auto save.
• Zoom Lens: 8-48mm / F1.2, ( Option: 8-48mm / F1.0 )
• White light source: reflective, 4WX2 tubes, Option : other wavelength light source UVA, UVB, UVC
• Conncet with thermal printer and printout high quality gel image.
• Moveable dark hook for easy transfer from UV light box to white light box
