Knife Mill

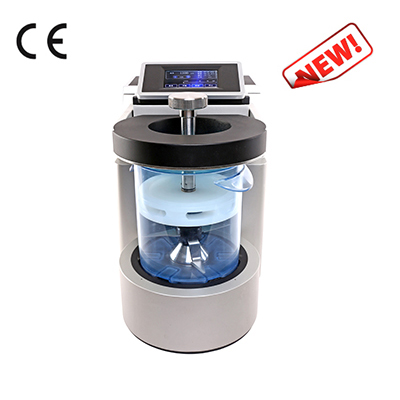

The knife mill HM300 is a newly designed product,which is especially suitable for grinding and homogenizing large amount of samples to the analysis level in a short time.


Sample type: Soft, elastic, fibrous, water-bearing, oily, fatty, dry sample

Application Example
  • Agriculture: grain, feed, etc
  • Biology: mouse tissue, plant leaves, seeds, seedling and germ
  • Medicine: Medicine, pills, etc
  • Food: dried melon, vegetables, frozen food, cocoa, candy, preserved fruit, meat,especially suitable for large amount sample, such as chicken bones, fresh fish, seafood, hazels,etc.

Products advantages

  • 5 inch LED touch screen display, easy to operate.
  • Powerful brushless motor, the speed can be adjusted at the range of 500- 4000 rpm.
  • Designed with double-deck 4 pieces of straight blades to ensure higher grinding efficiency.
  • The mill designed with electromagnetic lock. It’s safe and reliable. The cover can not be opened during grinding process.
  • With interval mode, regular mode and reverse mode.
  • 10 SOPs can be stored.
  • It allows to dry grinding and wet grinding.

Technical Specifications

Feed size<130 mm
Final fineness< 300 μm
Motor speed500~4000rpm
Time setting0:01-5:59(min/s)
Batch quantity4L
Interval modeyes
Knivesstainless steel
Number of blades4
Motor power1.5KW
Power supply220V,50Hz
Instrument size(W*D*H)303*575*485mm
Package size(W*D*H)705*475*600mm
